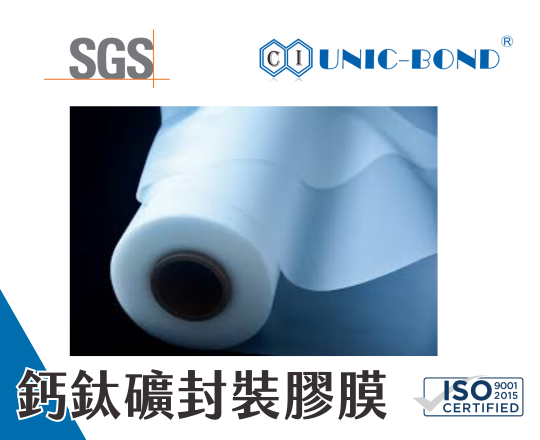

SH-500
SH-500
Product Specifications & Recommended Processing Parameters – Doublefish® SH-500
| Thickness | Length | Width |
|---|---|---|
| 200 μm | 50 m | 970 mm – 1200 mm |
| 400 μm | 50 m | 970 mm – 1200 mm |
Lamination Temperature: 105–120°C
Vacuum Time: 360 ± 60 seconds
Lamination Time: 600 ± 120 seconds
| Category | Property | Value | Unit |
|---|---|---|---|
| Physical Properties | Flow Temperature | 75 – 85 | °C |
| Tensile Strength | >10 | MPa | |
| Adhesion to Glass | ≥80 | N/cm | |
| Shrinkage Rate (MD / TD) | ≤2.0 / ≤1.0 | % | |
| Optical Properties | Light Transmittance 280–380 nm | ≥75 | % |
| Light Transmittance 380–1100 nm | ≥85 | % | |
| Insulation Properties | Volume Resistivity | ≥1 × 10¹⁵ | Ω·cm |
| Dielectric Breakdown | >200 | KV/mm | |
| Moisture Barrier | Water Vapor Transmission Rate | ≤5.0 | g/m²·day |
